The trailer axle with hubs is an ideal application for new trailers and replacement of damaged Dexter/AL-KO/Rockwell/Dunbier/Lippert etc., the axle beam has solid and hollow/tube types. You can use it to stand up to the normal wear and tear. The standard bolt patterns make it easy to find compatible wheels and tires. We are able to provide a number of different sized axles to meet your requirements. Trailer Axles can be produced upon request of customers.
Features

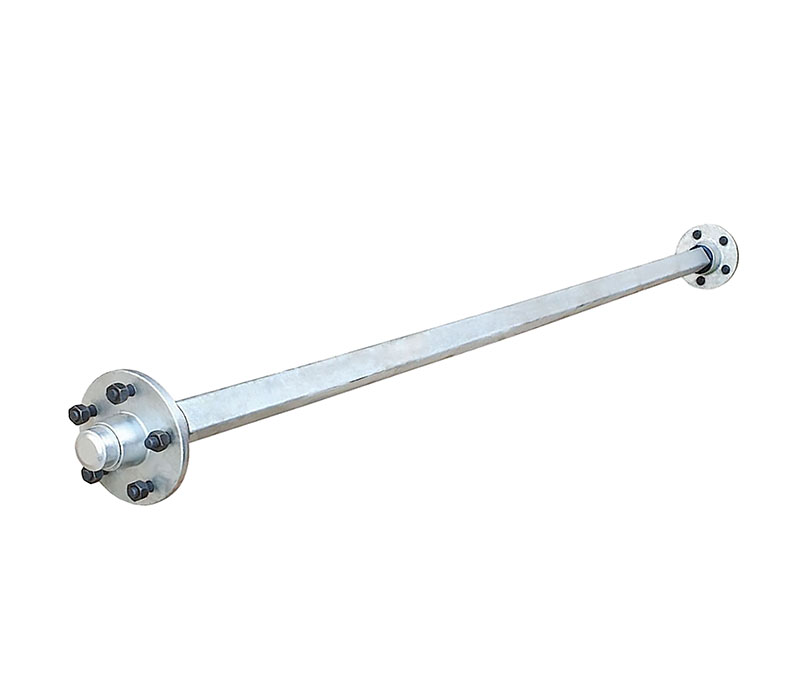

l Square straight trailer axle is great for boat, utility or snowmobile trailers.
l All axles are standard raw material, painted or galvanized are available. The galvanized axles can offer best protection from corrosion and rust.
l In Australia and New Zealand, manufacturers often use square trailer axles to prevent the tube axle spin in the u bolts; And U.S. and Canada manufacturers like to weld the spring seat perches onto axle tubes which makes the axle to be fixed on/under the leaf springs with a u-bolt kit.
l Reversible straight beam can be used for underslung or overslung applications.
l Fully assembled, bearings, grease seal and grease cap are included.
Specifications
Axle Shape | Square | Market: USA, Canada | |
Type | Idler Hub | ||
Capacity | 2000 lb | 3500 lb | |
Bolt Pattern | 4 x 4” | 5 x 4.5” | |
5 x 4.5” | 5 x 4.75” | ||
5 x 5” | |||
5 x 5.5” | |||
6 x5.5” | |||
Tube Size | 1-1/2” x 1-1/2” | 2-3/8” | |
Beam Size: | 2” x 2” | ||
Spindle Size | 1” | 1-3/8” x 1-1/16” | |
1-1/16” | |||
Axle Shape | Square | Market: Australia, New Zealand | ||||
Type | Lazy Hub | |||||
Capacity | 1000 kg | 1450-1500 kg | 1450-2000 kg | 3000 kg | 2000 kg | |
Bolt Pattern | 4 x 100mm | 4 x 139.7mm | 4 x 139.7mm | 5 x 5.5” | 5 x 5.5 | |
4 x 4” | 5 x 4.25” | 5 x 4.25” | 5 x 150mm | 5 x 150mm | ||
4 x 4.25” | 5 x 4.5” | 5 x 4.5” | 5 x 6.5” | 5 x 6.5” | ||
4 x 4.5” | 5 x 120mm | 5 x 120mm | 6 x 139.7mm | 6 x 139.7mm | ||
5 x 100mm | 5 x 4.75” | 5 x 4.75” | 6 x 205mm | |||
5 x 4.25” | 5 x 5.5” | 5 x 5.5” | ||||
5 x 4.5” | 5 x 150mm | 5 x 150mm | ||||
5 x 6.5” | 5 x 6.5” | |||||
6 x 139.7mm | 6 x 139.7mm | |||||
Axle Size | 40 mm | 45 mm | 50 mm | 63 mm | 65 mm (Tube) | |
Bearing | LM | Slimline | Slimline | 3.0 Tonne | 2.0 Tonne | |
1.5 Tonne | 1.5 Tonne | |||||
Parallel | 2.0 Tonne | |||||
Parallel | ||||||
Product Composition
² Axle Beam
² Idler/Lazy Hubs
² Inner Bearings
² Outer Bearings
² Inner Races
² Outer Races
² Grease Seals
² Cotter Pins
² Spindle Nuts
² Spindle Washers
² Studs
² Grease/Oil/Dust/Hub Cap
